| s | 2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps |
| Antenna: External 6dBi non-removable omnidirectional antennas | |
| Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO | |
| Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration | |
| Support beamforming | |
| Wi-Fi channel: | |
| 2.4GHz Channel： 1,2,3,4,5,6,7,8,9,10,11,12,13 | |
| 5GHz Channel： 36,40,44,48,149,153,157,161,165 | |

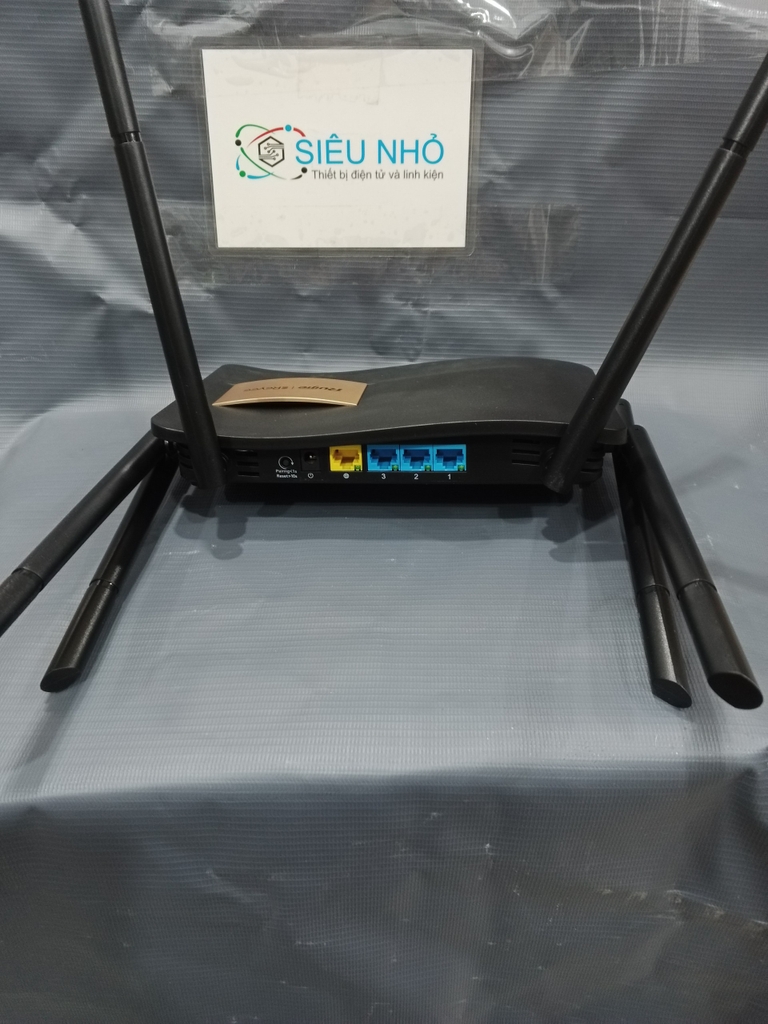

| Ports | 1 10/100/1000M WAN port（Auto MDI/MDIX） |
| 3 10/100/1000M LAN ports（Auto MDI/MDIX） | |
| 1 blue system LED indicator, 4 network port LED indicators | |
| 1 device pairing/factory reset button | |
| 1 power input interface | |
| Physical specifications | Dimensions：220x140x36mm (W×D×H, excluding antennas) |
| Weight：0.98kg（entire equipment including packaging） | |
| Power supply | Power specification: DC12V 1.5A |
| Maximum power: <14W | |
| Certification | CCC，SRRC |
| Operating environment | Operating temperature: 0-45℃ |
| Storage temperature: -40-70℃ | |
| Operating humidity: 5%-95%RH (non-condensing) | |
| Storage humidity: 5%-95%RH (non-condensing) | |
| Main features | Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay |
| Obtain PPPoE account from the old router | |
| Wi-Fi dual-band separation/ integration | |
| Guest Wi-Fi; smart home Wi-Fi; wireless network isolation | |
| Static DHCP address | |
| Virtual server: port mapping, DMZ, etc. | |
| DDNS: Oray | |
| UPnP | |
| Network security | Wireless security: WPA-PSK/WPA2-PSK encryption |
| ARP protection: IP/MAC binding | |
| SSID hiding | |
| Preventing rogue devices (Blacklist/whitelist) | |
| Internet access control | |
| Advanced features | Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices |
| Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment | |
| Bandwidth management: hardware NAT, intelligent bandwidth allocation | |
| Auto network inspection, fault diagnosis | |
| Software upgrade: Automatic & manual cloud software upgrade | |
| Management mode | Local web page |
| Cloud management: MACC cloud platform | |
| Ruijie Cloud app: iOS version, Android version |
