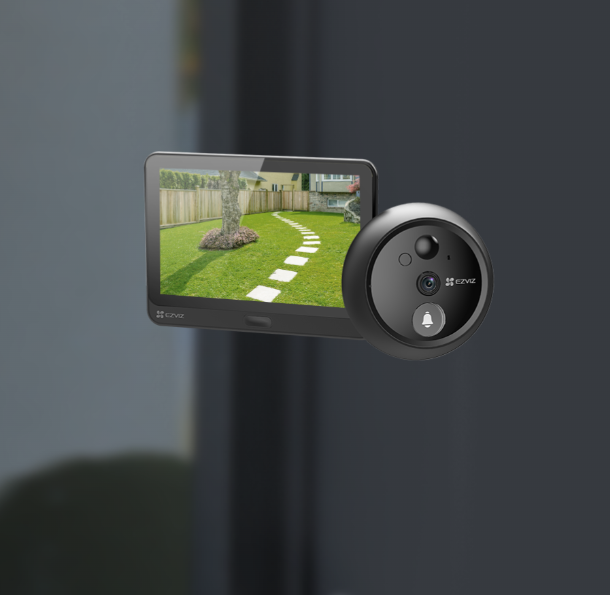

HP4: Wire-free Peephole Doorbell
Specifications
| Specifications | |
|---|---|
| Model | CS-HP4 |
| Installation Parameters | |
| Supportive Hole Diameter | 15.5 to 50 mm |
| Supportive Door Diameter | 35 to 105 mm (1.38 to 4.13 inch) |
| Camera Parameters | |
| Sensor | 1/3" Progressive Scan CMOS |
| Lens | 2.0 mm @ F2.2, visual angle (diagonal):155° |
| Day/Night Switch | ICR infrared filter |
| IR Distance | Max. 3 m |
| Max. Resolution | 1080p / 2MP |
| Video Frame Rate | 15fps |
| Interface | |
| Storage Interface | MicroSD card slot (max. 512 GB) |
| Audio Input | Built-in high sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Buttons | Doorbell button, power button, Screen wake up button |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Video Intercom | Local and remote video intercom |
| General Function | Cloud video encryption and image encryption |
| Wireless | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
| General | |
| Screen | 4.3-inch color screen |
| Color | Black |
| Operating Conditions | -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less |
| Power Supply | DC5V±10% |
| Power Consumption | Max. 2.2W |
| Dimension | Screen and Base: 115.5 × 85.5 × 24.5 mm (4.55 × 3.37 × 0.96 inch) |
| Peephole Doorbell: 71 × 71 × 48.3 mm (2.80 × 2.80 × 1.90 inch) | |
| Weight | 302 g (10.65 oz) |
| In the box | |
| In the box | - HP4 Peephole Doorbell |
| - Panel | |
| - Mounting Base | |
| - Power Cable (1 m / 3.3 ft) | |
| - Screws × 6 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | UL / CE / WEEE / REACH / RoHS |
