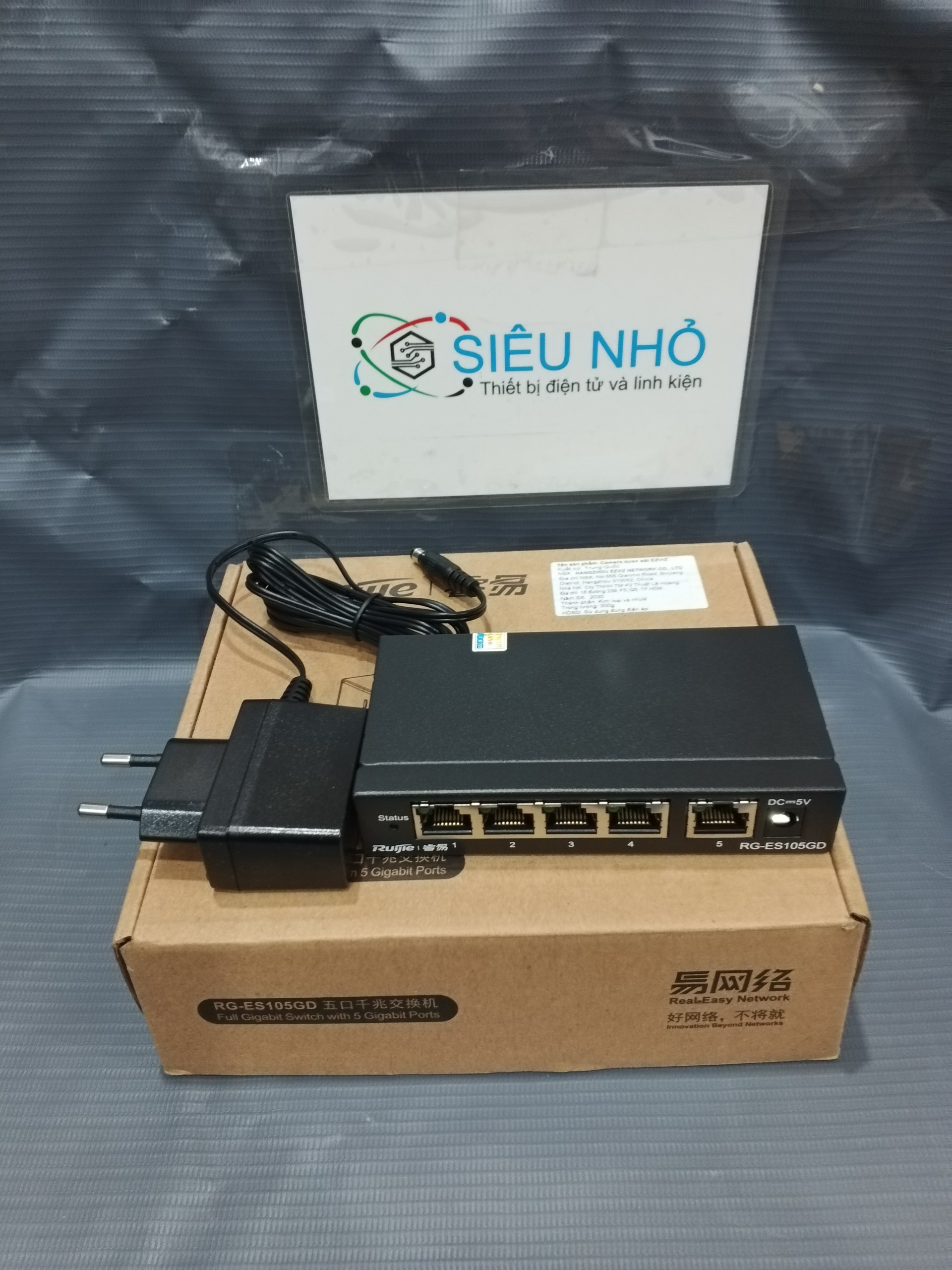

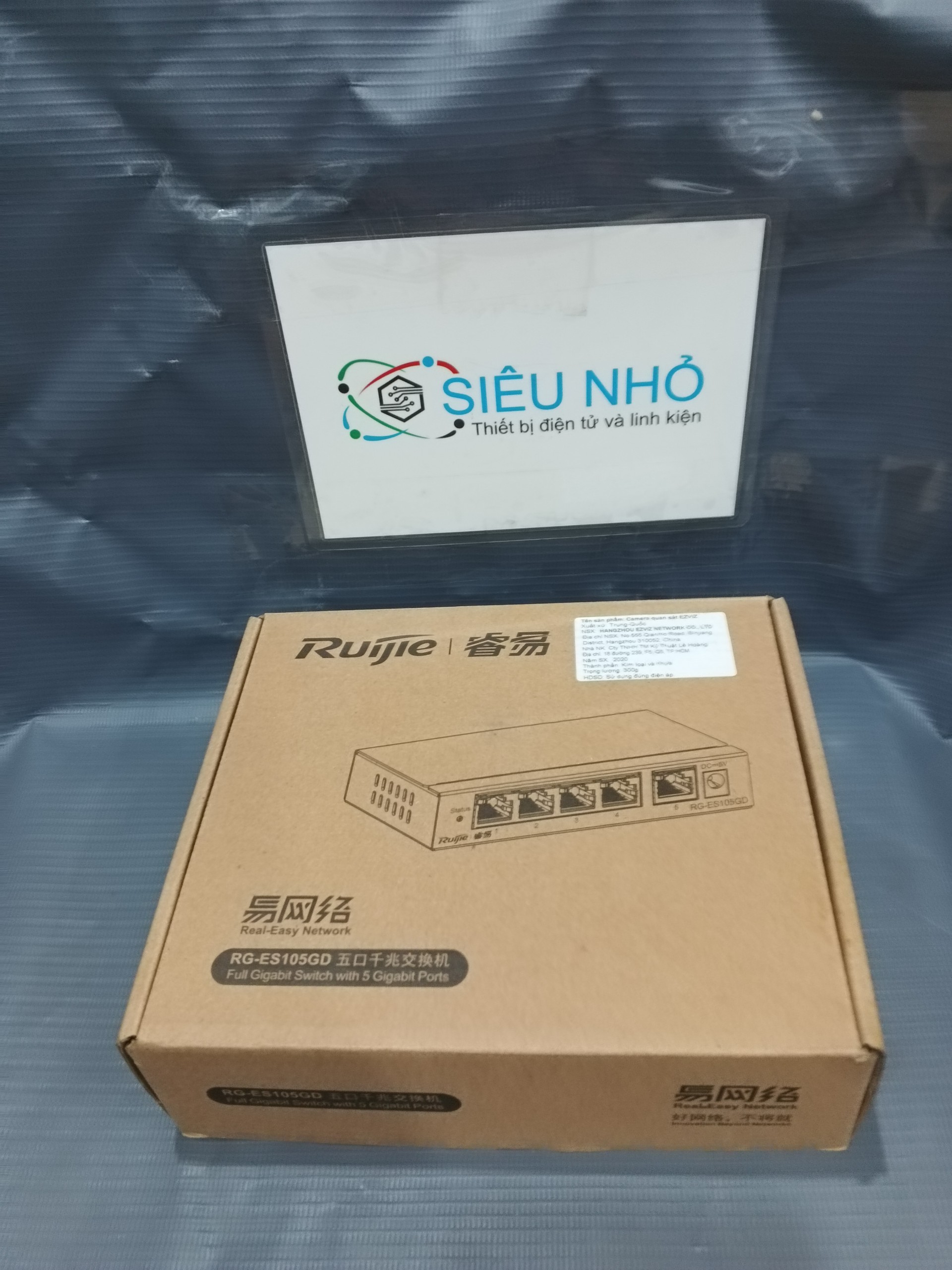

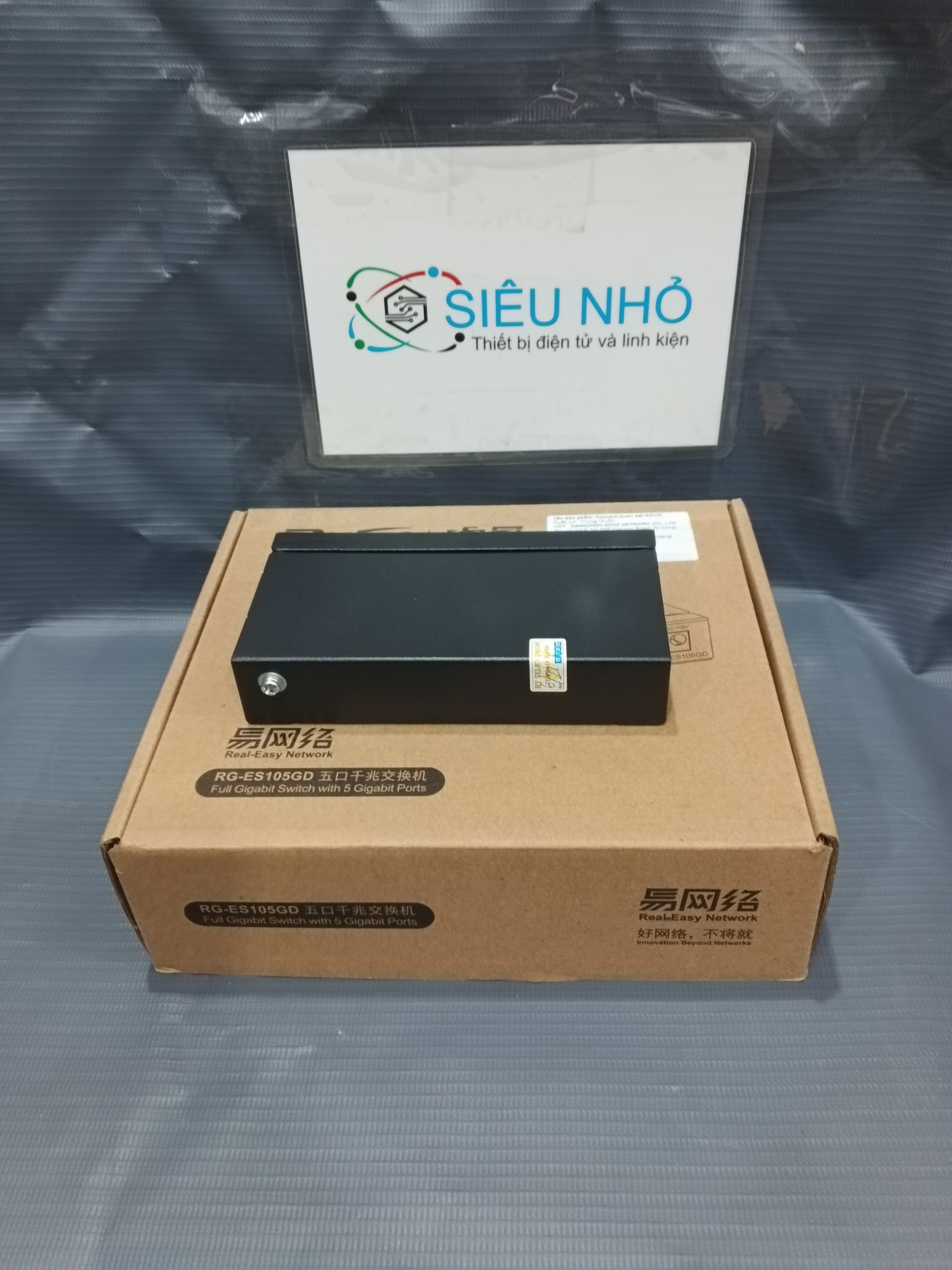

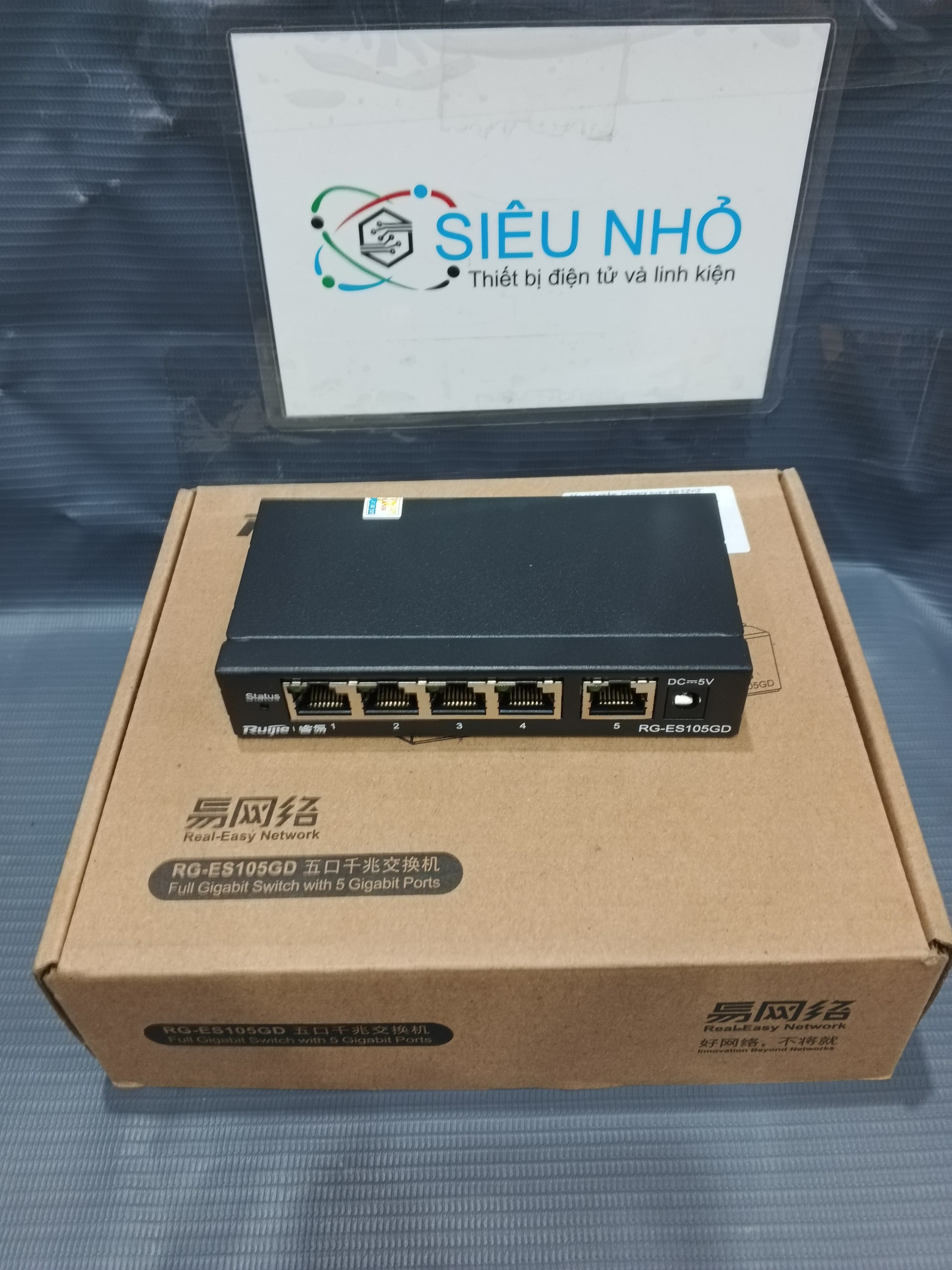

5-port Gigabit Unmanaged Switch RUIJIE RG-ES105GD
- RG-ES100 Series supports self-adaptive ports and plug-and-play feature with zero configuration.
- The entire casing is made of metal which provides better heat dissipation.
- The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.
- The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.
Specifications
| Model | RG-ES105GD |
| Port | 5 10/100/1000Mbps RJ45 ports |
| Maximum port forwarding rate | 1000Mbps |
| Auto-MDI/MDIX | Support |
| MAC address | 2K |
| Backplane bandwidth | 10Gbps |
| Maximum packet forwarding rate | 7.44Mpps |
| LED indicator | Link/Act status LED indicator for each port, Power indicator |
| Dimensions | 119 x 62 x 24 mm |
| Power input/output | External 5VDC 1.0A |
| Maximum power consumption | ≤5W |
| Working Temperature | 0℃~40℃ |
| Storage temperature | -40℃~70℃ |
| Working humidity | 10%~90% RH non-condensing |
| Storage humidity | 5%~90% RH non-condensing |
