| Model | RG-ES110D-P |
| Hardware specifications | |

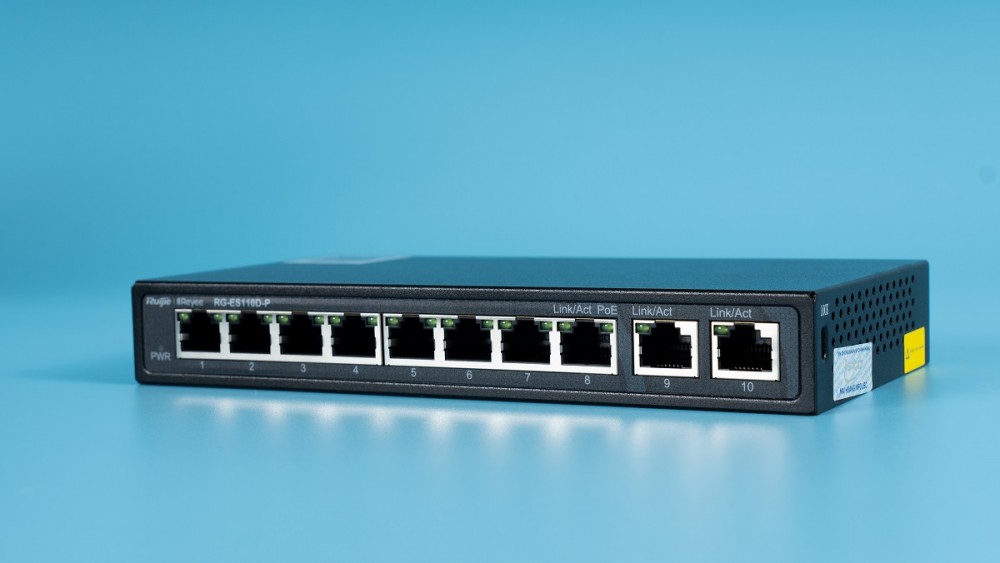

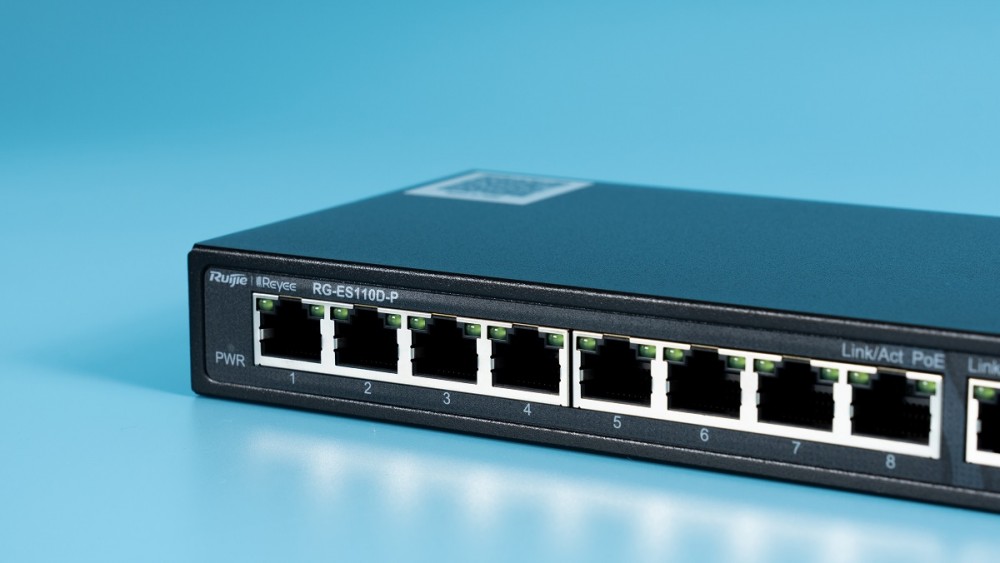

| Ports | 8*10/100 Mbps PoE/PoE+ Ports |
| 2*10/100/1000 Mbps uplink ports | |
| Operating mode | Half-duplex, full-duplex, auto-negotiation mode |
| Support auto MDI/MDIX | |
| Switching capacity | 5.6Gbps |
| Package forwarding rate | 4.17Mpps |
| Power supply | |
| Surge protection | Adapter: |
| Common mode: ±4 kV | |
| Differential mode: ±2 kV | |
| Network ports: | |
| Non-PoE ports: ±4 kV | |
| PoE ports: ±6 kV | |

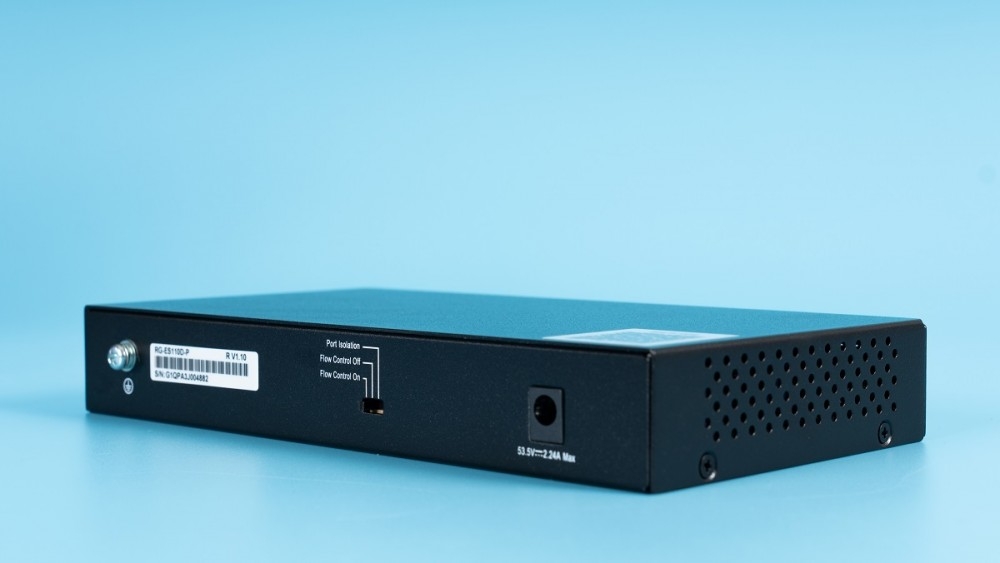

| Port Mode | “Flow Control On” |
| “Flow Control Off” | |
| “Port Isolation” | |
| from left to right | |
| Power consumption | 129W |
| PoE power budget | 110W |
| Fan | NA |
| Dimensions | 190 x 100 x 28 mm |
| (W x D x H) | |
| Operating temperature | 0℃ to 45℃ |
| Storage temperature | -40℃ to 70℃ |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
